The total potential energy of the system for the induced dipole force field can be written as:
     E = E_bnd + E_nonbnd = E_bnd + E_vdw + E_es + E_plz
The E_bnd term consists of bond, angle, dihedral angle terms, etc. The E_nonbnd term consists of van der Waals, electrostatic, and polarization terms. The E_plz term is non-additive. The E_nonbnd terms are focused on because they are directly involved in the interaction energy. The Lennard-Jones parameters of E_vdw were essentially taken from the AMBER force field. These were partially adjusted by the introduction of the polarization term. The atomic charge parameters of E_es term are derived from the electrostatic potential(ESP) fitting. The ESP fitting of Gaussian 09 (G09) program ¹ is used and the calculated ESP data are saved in the file. The saved data are used for the re-optimization of the charges using ESPopt program if nessessary. As shown in below, G09 is modified a little for the ESP data save. The atomic polarizability parameters of E_plz term are derived from the polarized one-electron potential (POP) fitting. The POPs are the difference between ESPs with and without an external test charge. The saved ESP data are also used for the POP fitting using POPopt program. Both fittings are important for building polarizable molecular block model.

Here, the modefication of G09 program is discrived in detail. Then the sample job for the modified G09 is shown. The data on the molecular surface point selection are also shown.

1. Modification of G09 to make restart ESP data

2. Sample input and output for modified G09

3. Comparison with other point selections

4. Kosugi point selection

5. G09 program compile memo

      References

1. Modification of G09 to make restart ESP data
The subroutine SurGS3 and WriESP parts, which calculate the surface electrostatic potential (ESP) coordinates of a molecule and write it to an external file, were first implemented in the GSCF3 program.² These routines can also be implemented in the Gaussian program series. Here, the implementation to G09 is explained.
The subroutines SurGS3 and WriESP must be implemented in G09 to use the ESPopt and POPopt programs to generate atomic charges and atomic polarizabilities, respectively.
When using the information on this website, please cite the four papers ², ³, ⁴ and ⁵ shown below.

Three component programs, l601.F, l602.F, and utilam.F of G09, must be modified to incorporate the subroutines SurGS3 and WriESP. The program used was G09RevC.01. The modified parts are specifically displayed within the iframe.

l601.F

IOp(20) on Overlay 6 controles the electrostatic-potential drived charges. The option "1" is Merz-Kollman point selection. "2" is CHelp point selection. "3" is CHelpG point selection. Kosugi point selections are newly added. The option "6", "7", "8", and "9" represent 2.0, 1.7, 1.8, and 1.9 times the van der Waals radius, respectively.

1. Insert 4 lines of comment between lines 206 and 207 in Subroutine MulDrv.

2. Insert 4 lines between lines 2500 and 2501 in Subroutine DQ.

3. Insert 14 lines between lines 2583 and 2584 in Subroutine DQ.

Download l601_mod.F.txt


l602.F

Subroutine SurGS3 and WriESP are added in l602.F. Electrostatic potentials by Kosugi point selection are written in the restart file.

1. Insert 6 lines of comment between lines 79 and 80 in Subroutine Prop1E.

2. Insert "CelVec(3,3)," at line 95 in Subroutine Prop1E.

3. Insert 6 lines between lines 625 and 626 in Subroutine Prop1E.

4. Insert 22 lines between lines 1034 and 1035 in Subroutine Prop1E.

5. Insert 3 lines of comment between lines 1275 and 1276 in Subroutine ESPFit.

6. Add Subroutine SurGS3 to the bottom line of l602.F.

7. Add Subroutine WriESP to the bottom line of Subroutine SurGS3.

Download l602_mod.F.txt


utilam.F

VDW radius are defined in Subroutine GetVDW. Merz and Kollman values are used in Kosugi point selection.

1. Insert one lin of comment between lines 162008 and 162009 in Subroutine GetVDW.

2. Insert 5 lines between lines 162042 and 162043 in Subroutine GetVDW.

Download utilam_mod.F.txt

2. Sample input and output for modified G09
"opt_T_C_aT.gjf" is a sample input file for G09. The molecule to calculate is cytosine. After geometry optimization the ESP fitting is performed. IOp(20) on Overlay 6 controls the electrostatic-potential drived charges. To select the Kosugi point selections, the key word "pop=MK iop(6/20=8)" is required. The options "6", "7", "8", and "9" represent 2.0, 1.7, 1.8, and 1.9 times the van der Waals radius, respectively. The Kosugi point selections use the Merz-Kollman (MK) VDW radius.


Download opt_C_aT.gjf

"runG09_opt.cm" is a sample C-shell script to run modified G09. The executable G09 is located at /usr/local/G09PN/g09/bsd/g09.login. Assume that the ".cshrc" file in home directory has the following line added:
"alias G09PN 'setenv g09root /usr/local/G09PN; source $g09root/g09/bsd/g09.login;time g09' "
The calculated surface potentials are written to the restart file "Rest_scf". (For MP2, the restart file name is "Rest_mp2".) Now rename the rest file to "opt_scf_C_aT.rest" to save it. This shell script can be run as a background job by using the command line:
"> cshrc runG09_opt.cm >& runG09_opt.log & "


Download runG09_opt.cm

"opt_scf_C_aT.rest" is the restart file for ESP fitting containing atomic xyz coordinates (au), optimized charges (e), surface xyz coordinates (au), and ESPs (au) are included.


Download opt_scf_C_aT.rest

3. Comparison with Other Point Selections

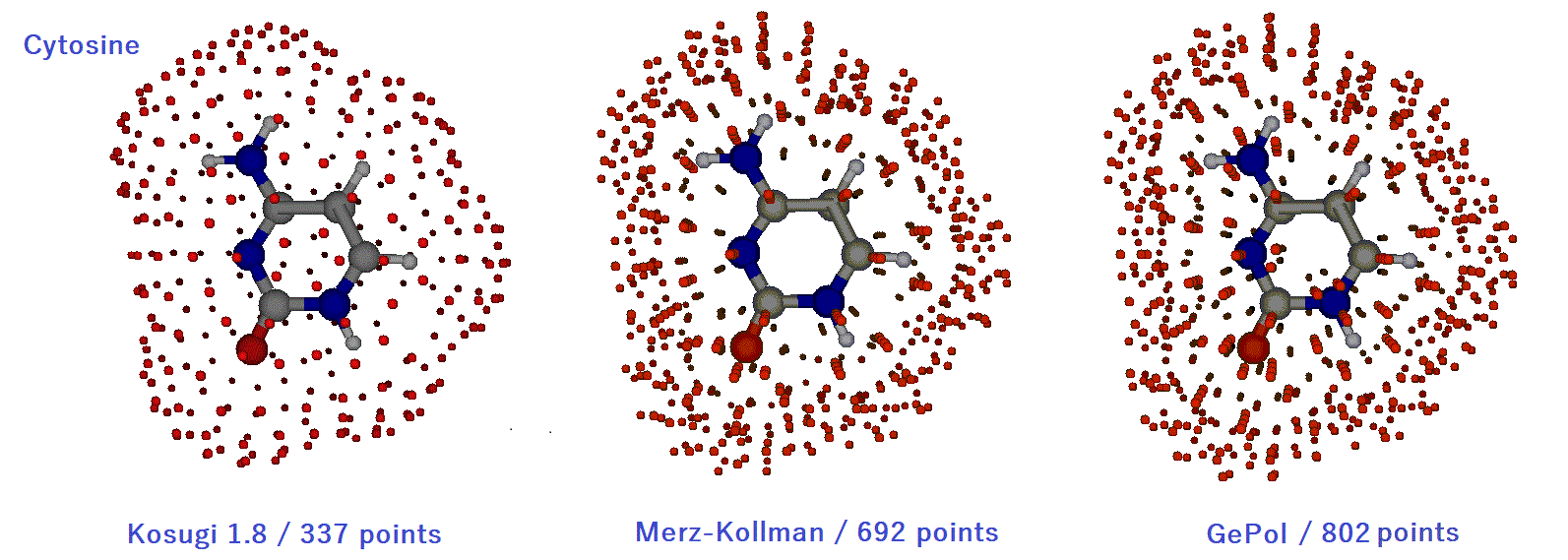

The G09 ESP fit results of cytosine are shown in Table A1 and A2. The calculation level is wB97XD/aug-cc-pVTZ. The result of Merz-Kollman (MK) point selection (defauldt) is quite good. The Connolly surface is used in the MK selection. The relative root mean square deviation (rrmsd) is 5%. The reproducibility of the dipole moment is also quite good. The charges obtained from the ESP fit are shown in Table A2. The molecular surface points of Kosugi, Merz-Kollman, and GePol are shown below. These are perspective views with red dots on the front and black dots on the back. The rrmsd of CHelp and CHelpG are slightly heigher. The rrmsd of GePol is 5%. The rrmsd of Kosugi point selections are 3-4%. The reproducibility of the dipole moment is also quite good even with a single layer. The Kosugi selection uses the MK VDW radius. We are using the Kosugi 1.8.

Table A1. Deviation of Electrostatic Potentials and Dipole Moments in D

point selection	iop(6/20)	points	layer/grid	ESP fit RMSD (RRMSD)	μ x	μ y	μ z	μ Tot
wB97XD/ aug-cc-pVTZ	-	-	-	-	4.84	-4.57	0.00	6.65
Merz-Kollman	１	692	4	0.0015 (4.74 %)	4.85	-4.56	0.00	6.66
CHelp	2	849	5	0.0035 (15.93 %)	4.83	-4.54	0.00	6.63
CHelpG	3	9586	grid	0.0029 (9.62 %)	4.87	-4.55	0.00	6.67
GePol	4	802	4	0.0013 (4.62 %)	4.87	-4.57	-0.00	6.68
Kosugi 1.7	7	333	1	0.0012 (4.00 %)	4.84	-4.59	-0.00	6.67
Kosugi 1.8	8	337	1	0.0010 (3.56 %)	4.85	-4.58	-0.00	6.67
Kosugi 1.9	9	338	1	0.0008 (3.16 %)	4.84	-4.59	-0.00	6.67
Kosugi 2.0	6	345	1	0.0007 (2.86 %)	4.84	-4.59	-0.00	6.67

Table A2. Electrostaic Potential Drived Atomic Charges

Atom	Merz-Kollman	CHelp	CHelpG	GePol	Kosugi 1.7	Kosugi 1.8	Kosugi 1.9	Kosugi 2.0
H1	0.358	0.312	0.341	0.352	0.368	0.369	0.371	0.367
N1	-0.645	-0.496	-0.615	-0.648	-0.699	-0.707	-0.718	-0.731
C6	0.283	0.168	0.280	0.316	0.353	0.361	0.379	0.393
H6	0.131	0.107	0.156	0.124	0.119	0.120	0.118	0.117
C5	-0.768	-0.529	-0.648	-0.827	-0.862	-0.883	-0.907	-0.924
H5	0.241	0.173	0.189	0.256	0.259	0.263	0.268	0.272
C4	1.070	0.961	1.023	1.123	1.189	1.218	1.239	1.252
N4	-1.072	-1.083	-1.045	-1.099	-1.149	-1.168	-1.175	-1.178
H41	0.451	0.445	0.437	0.458	0.472	0.478	0.479	0.479
H42	0.443	0.438	0.429	0.449	0.461	0.466	0.468	0.469
N3	-0.845	-0.772	-0.833	-0.871	-0.902	-0.912	-0.921	-0.929
C2	0.990	0.932	0.990	1.019	1.038	1.040	1.043	1.051
O2	-0.639	-0.655	-0.653	-0.650	-0.647	-0.645	-0.643	-0.644

     Molden is used to display molecules and molecular surface points.

4. Kosugi point selection
To select the Kosugi point selections, the key word "pop=MK iop(6/20=8)" is required. The options "6", "7", "8", and "9" represent 2.0, 1.7, 1.8, and 1.9 times the van der Waals radius, respectively. The Kosugi point selections use the MK VDW radius. For example, the VDW radii of the H and C atoms are 1.2 Å and 1.5 Å, respectively.

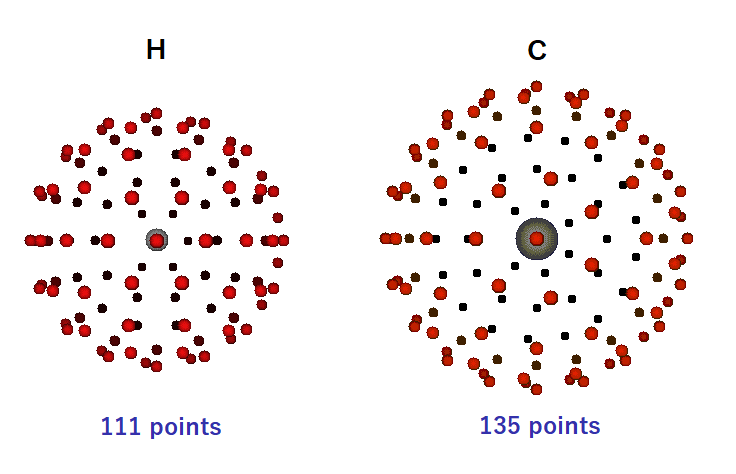

When the VDW radius is multiplied by 1.8, 111 points are placed on the surface of H atom and 135 points are placed on the surface of C atom. As shown in the figure below, the larger the atomic surface, the greater the number of points to be arranged. These are perspective views with red dots on the front and black dots on the back.

If we compare the H sphere to the Earth, there are 17 points on the equator and 1 point each on the north and south poles. The distance between the North Pole and the equator is divided into 5 equal parts of 18 degrees each, and 6, 10, 14, and 16 points are placed in each. The southern hemisphere is similarly scored. In this way, 111 points are placed on the H sphere as evenly as possible. Unfortunately, Kosugi point selection cannot arrange vertices evenly like the regular icosahedron, and the directionality is not even.

In the case of molecule, we remove points that overlap between atoms. The latest revision of subroutine SurGS3 shown above removes one of the too close points. It reduces the number of points and distributes the points more evenly. The cytosine surface is shown above. It is down 10 points from the original SurGS3.

5. G09 program compile memo

Install the PGI compiler for compiling the G09 source code in advance. There is a recommended version of the PGI compiler for each revision of G09, so you will need to download the appropriate version of the PGI compiler. For G09 RevC.01, download version 11.8 (pgilinux-2011-118.tar.gz) from the PGI 2011 Release Archive (https://www.pgroup.com/).

Prepare to install the PGI compiler
Set PGI environment variables in .cshrc for csh
Flush root environment variables

Create the /scr/pgi directory in the scratch file, and expand the downloaded pgilinux-2011-118.tar.gz there

Install PGI in English environment
See /opt/pgi/

Get a new license (license.dat) from https://www.pgroup.com/account/login.php
Place the license.dat in the /opt/pgi directory

Reset and start FlexNet license manager
Register the FlexNet startup script (lmgrd.rc) in the system

Compile G09

Configure the environment for using G09 in your home directory
